A floating photovoltaic array on a calm lake, pond, reservoir, or retention basin is buildable with hardware that already exists, and it can put an underused water surface to work without taking farmland out of production. It also introduces failure modes a ground mount does not: the array moves, and the water level moves.
Treat the project as five gates that all have to open: site data, mooring design, electrical architecture, permitting, and an operations plan. If any one of them stays shut, the right decision is to stop, shrink the scheme, or move to a different water body. Pushing ahead on a pond that cannot hold an anchor is how floating solar earns a bad reputation.
It is written for utility planners, EPC teams, commercial installers, and agricultural pond owners who will hire engineers and licensed electricians. Homeowners looking for a plug-and-play pond kit wired over a weekend are in the wrong place.
Quick Take
- Site gate: bathymetry, depth, a seasonal and storm water-level record, and worst-case wind and wave modelling before any layout work begins.
- Mooring gate: anchors and lines engineered for storm load across the full water-level range, with adjustable slack rather than a fixed rope.
- Electrical gate: shore-based inverters and transformers, water-rated cable, licensed design, sealed glands, and strain relief at every entry point.
- Permit gate: environmental review, water-authority approval where drinking water is involved, and a coverage limit agreed with the regulator.
- Operations gate: boat access, an inspection routine, a storm shutdown and emergency mooring plan, and spares on the shelf.
What Floating Solar Is on Calm Inland Water

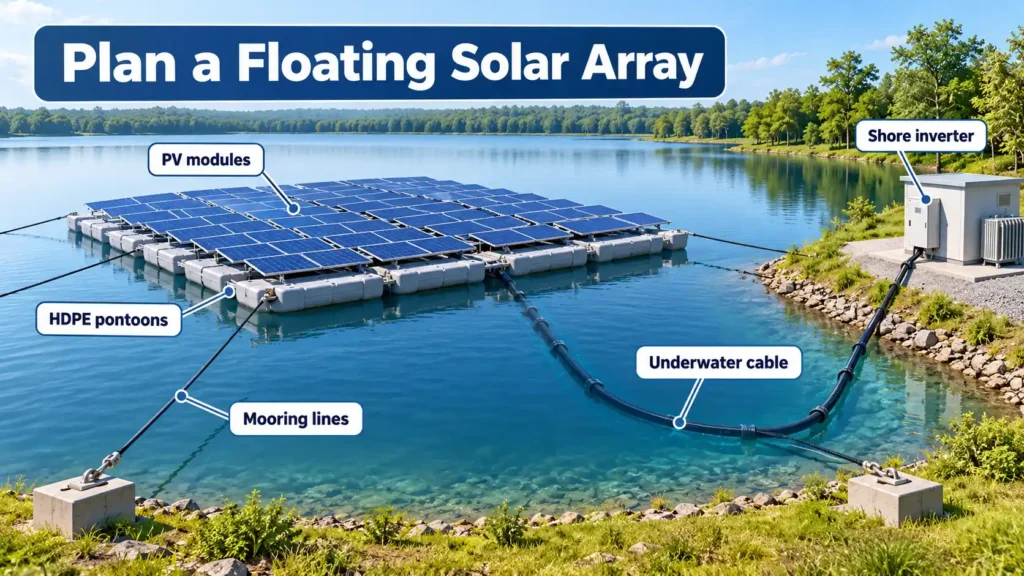

Floating solar, or FPV, consists of PV modules mounted on a floating structure, usually plastic buoys and cables, deployed on reservoirs, quarry lakes, irrigation canals, and remediation or tailing ponds. The modules work exactly as they do on land. Everything around them changes: the foundation is buoyant, the anchor point is a lakebed or a shoreline, and the cable run crosses open water.
This guide focuses on calm, inland, man-made or sheltered water. The load cases, corrosion conditions, and permitting route all follow from that setting. Battery bank sizing and islanded microgrid control sit in a separate electrical design with their own documentation and code review. If your project needs storage, budget for a second engineering scope rather than bolting one onto the array drawings.
One module note worth settling early: bifacial modules appear in some floating designs, and reflected light from the water surface is one of the mechanisms behind the reported output gain on water. Any bifacial or albedo contribution is still a modelling assumption your engineer has to justify for your site, not a planning figure lifted from a brochure.
Prerequisites and Go/No-Go Checks
Screening a water body is a data exercise before it is a design exercise. Preferred sites in project guides run to calm water with low wind and wave action, generally 2 to 4 metres of depth, and a level that stays consistent through the year. Those are useful filters. They are not a substitute for a bathymetric survey and a load study, and a site that clears every filter can still fail on permitting or on the cost of the cable run to the nearest point of connection.
Prerequisites
- A bathymetric survey showing depth contours, underwater structures, and bottom type—mud, sand, or rock—because anchor selection depends on what the bed will hold.
- A water-level record spanning seasonal and storm conditions, plus temperature and water-quality data for the same body of water.
- Site-specific wind, wave, current, and fetch modelling at worst-case storm conditions, not an average annual wind speed.
- A named permitting pathway: environmental review, water-use rights, grid interconnection, and water-authority approval if the water is a drinking-water source.
- A structural or marine engineer for floats, frames, and mooring, and a licensed electrical designer for DC/AC layout, grounding, and protection.
- Shore access for cranes, barges, cable pulling, and crew changeover, plus a written maintenance access plan.
- An insurance and warranty review covering storm, hail, mechanical failure, floats, modules, and inverters before capital is committed.
| Screening item | What you must confirm | Stop or redesign when |
|---|---|---|
| Depth and bed | Contours are fairly uniform or manageable, and the bottom can hold the chosen anchor type. | Depth swings wildly, or the bed is bedrock where no anchor can be set. |
| Water-level range | The seasonal and storm range fits an adjustable mooring with defined slack. | The range is larger than the mooring geometry can absorb without a redesign. |
| Wind and wave exposure | Modelled worst-case fetch, wave height, and current are inside the platform’s rated envelope. | The site behaves like exposed open water rather than a sheltered inland body. |
| Water use and access | Drinking-water, irrigation, fishing, and recreational uses are identified and compatible. | Public access conflicts or water-authority objections cannot be resolved. |
| Ecology | Protected habitat, bird use, and fisheries are assessed, and a coverage limit is agreed. | The capacity you need requires covering more of the surface than the regulator will allow. |
| Shore and grid | A realistic cable route and point of connection exist within the project budget. | Distance to the substation destroys the business case. |
Design Decisions
Most of the engineering judgment sits in four choices: what floats, what holds the floats, where the power electronics live, and how much of the water surface you are willing to cover.
On buoyancy, the common platform is a modular high-density polyethylene pontoon system with walkways, assembled from repeating sections that bolt or pin together on the water. Specify aluminium or stainless-steel mounting frames for corrosion resistance, and verify the racking against your own structural load calculations and certified test data before the design is locked. Mixed metals need isolation, and fastener torque comes from the design.
Mooring is where calm-water projects often run into trouble. Lines run from designated points on the array to lakebed anchors or shoreline anchors, and the system has to survive the highest wind the site will see, the wave action generated by the longest fetch, and the full water-level range. Adjustable mooring systems are the standard answer to fluctuating levels, because a fixed line either goes slack at low water or over-tensions at high water. Severe storms have caused floating installations to fail, so anchoring and mooring must be engineered for storm, wind, wave, and water-level loads rather than scaled up from a smaller array.
For the electrical layout, the common arrangement is underwater cable from the floating array to inverters and transformers on land, where DC is converted and conditioned for the grid or a private wire. Putting inverters on the array shortens the DC run but moves electronics onto the water and puts maintenance on a boat; shore-based stations keep service work on dry land but require longer water-rated DC cabling and careful gland design at the shoreline transition. Your designer should confirm the architecture against voltage drop, fault protection, and access.
Module selection can stay conventional. Monocrystalline modules are the usual building block for utility-scale floating work, supplied through established distribution channels such as these monocrystalline solar panels from panel suppliers, with the final specification set by your energy yield model. Before you lock a module count, run the numbers on the solar project economics for the site; the mooring and cable costs can move the payback more than the module price does.
| Decision | Common choice | Fits when | Watch-outs |
|---|---|---|---|
| Float system | Modular HDPE pontoons with integrated walkways | You need scalable sections, repairable in place, launched in pieces | Confirm UV rating, buoyancy margin, and a spare-pontoon stock |
| Racking | Aluminium or stainless-steel frames | Long service life in a humid, splash-exposed environment | Mixed metals need isolation; fastener torque comes from the design |
| Anchor type | Lakebed anchors or shore anchors | Lakebed: adequate depth and a bed that holds. Shore: short fetch and stable banks | Shore anchors concentrate load; bed anchors need a bottom survey |
| Mooring style | Adjustable, with defined slack range | The water level moves seasonally or under flood operation | Slack must be engineered, not guessed; chafe points need protection |
| Electrical placement | Shore-based inverter and transformer station | You want service access on land and a shorter boat-based workload | Longer DC run, water-rated cable, sealed shore transition |
Install a floating solar array from site evaluation to commissioning
The build follows a predictable order, and most of the work happens on land or in a yard—exactly what you want, because water-borne work is slower, weather-dependent, and harder to inspect. Run the steps in sequence: each one produces a document or a verified condition that the next step depends on, so skipping ahead usually means repeating work later.
- Evaluate the site and confirm feasibility. Commission bathymetric mapping of the water body, then tabulate depth, level variation, wave action, sun exposure, and on-site constraints including transmission capacity and anchoring needs. You should end this step with a written go decision and a mapped bottom, not a rough guess.
- Produce the engineered design. Convert the survey into float layout, structural frame design, mooring geometry, electrical single-line drawings, string and combiner layout, cable routing, and grid interconnection. Drawings should carry the engineer’s stamp and specify torques, cable sizes, test values, and protection settings.
- Close out permits before construction. Submit the environmental assessment, water-use or water-authority approvals, and interconnection application, and secure the coverage limit in writing. Construction mobilization should not begin until every approval is issued rather than pending.
- Pre-assemble modular platforms onshore. Build float-and-frame subassemblies in a yard near the site, dry-fit the sections, check tolerances, bolt-hole alignment, and coating integrity, and run buoyancy or watertightness checks on sample floats. Pre-assembly completed in the yard is pre-assembly you are not doing from a boat.
- Launch and position the platform sections. Float each section onto the water using the planned launch point, align the array for solar exposure, and connect sections into the designed array shape. Confirm the assembled footprint matches the layout drawing before any mooring line is tensioned.
- Install the mooring system and set tension. Place lakebed or shore anchors per the design, connect lines at the designated array points, and set slack to the specified range. Where possible, check tension at both a high and a low water condition so the adjustable range is proven, not assumed.
- Mount the modules and complete string wiring. Clamp modules to the frames at the specified tilt, torque fasteners to the design value, bond and ground every section, then complete string wiring, combiner boxes, sealed glands, and cable strain relief. Every enclosure should close with its gasket seated and every gland tight before the array is left unattended.
- Run the shore connection. Route the underwater cable with conduit protection where specified, land it at the shore transition with a proper gland and bend radius, and terminate at the shore-based inverter and transformer station. Insulation resistance readings should be taken and recorded before any energizing step.
- Test, commission, and hand over. Complete grounding, insulation, earth-leakage, overcurrent, and functional tests, then compare measured performance against design expectations. The job is finished when as-built drawings, test records, the O&M manual, spares, and a crew-trained storm shutdown procedure have all changed hands.
Verification and Commissioning
Commissioning is a documentation exercise as much as a technical one. The handover pack should record frame alignment, module clamping, torque verification, bonding and grounding, string wiring, combiner boxes, sealing glands, mooring tension, and grounding, insulation, earth-leakage, overcurrent, megger, and I-V commissioning tests. The pass values come from your stamped design and the applicable electrical code, rather than a generic checklist.
Verify the result
- Bonding and grounding continuity confirmed at every array section and at the shore station.
- Insulation resistance and earth-leakage tests recorded and inside the design limits, with no wet-string anomalies.
- Overcurrent devices and protection settings match the stamped drawings, with the settings sheet filed.
- Every gland sealed, every cable strain-relieved, and every enclosure gasket seated.
- Module clamp torque spot-checked against the specified value across sampled rows.
- String I-V curves match the expected shape, with no isolated strings or mismatched modules.
- Mooring tension measured and recorded at a stated water level, with the slack range documented for future inspections.
- Freeboard and section alignment within design tolerance across the whole array.
- Storm shutdown and emergency mooring procedure walked through with the operating crew.
- As-built drawings, test records, spares list, and O&M manual delivered.
Failure Modes and Recovery Playbook
Most field problems on a floating array show up as one of six symptoms. Diagnose before you re-tension, re-energize, or send anyone onto the water.
The array has drifted or rotated off its design position
Check whether the water level moved outside the designed range, whether a line has gone slack through wear or a failed shackle, or whether an anchor has crept in soft sediment. Reset tension only after inspecting every line end and the anchor itself; re-tensioning a damaged assembly transfers the problem to the next weakest point. If drift exceeds the design allowance, return to the mooring engineer rather than adjusting by eye.
One section sits lower in the water than the rest
Lost freeboard usually means a breached pontoon, water ingress at a joint, or accumulated ballast such as debris trapped under the walkway. Isolate the section, remove the modules above it, replace or repair the float, and inspect neighbouring pontoons for abrasion and UV damage at the same time.
Earth-leakage trip or falling insulation resistance on a wet string
Water ingress at a connector or gland is the first suspect. De-energize and lock out the string, inspect every connector and enclosure entry in that string, replace the failed gland or connector rather than taping it, and repeat the insulation test before the string is returned to service.
Output is below the energy model on clear days
Compare string-level data first. Bird droppings and algae films cut yield on individual modules, a single failed string can drag a whole combiner down, and inverter derating shows up as a flat ceiling on the production curve. Clean with non-abrasive methods, verify string performance with an I-V trace, and check inverter temperatures and fault logs before assuming a module problem.
A storm warning is issued for the site
Follow the written shutdown sequence: de-energize as designed, confirm the array is secured, deploy emergency mooring if the plan calls for it, and get crews off the water. After the event, inspect mooring, freeboard, cable entries, and anchor lines before re-energizing, and record what changed.
Mooring line chafe at an anchor or guide
Chafe is a wear indicator, and it will recur unless the contact geometry changes. Add or replace the protective sleeve or thimble specified by the designer, check the shackle and swivel, and shorten the inspection trigger for that line so the next failure is caught early.
Maintenance and Longevity
| Task | Trigger | What to check |
|---|---|---|
| Buoyancy and freeboard | Every site visit | Pontoon waterline, joint gaps, trapped debris, visible cracks or abrasion |
| Mooring tension and hardware | Before storm season and after any water-level extreme | Line tension against the recorded baseline, chafe, shackles, swivels, anchor line entry |
| Racking and fasteners | Every inspection round | Corrosion at dissimilar-metal contacts, loose clamps, frame alignment |
| Electrical enclosures | Every inspection round | Gasket seating, gland tightness, condensation, cable strain relief, inverter fault logs |
| Module cleaning | When monitoring shows a string-level dip | Bird droppings, algae film, and debris; clean with non-abrasive methods only |
| Anti-fouling and walkways | Seasonal review | Surface growth on floats and walkways, slip risk, drainage paths |
| Spares and repair plan | Annual review | Pontoon stock, connectors, glands, line hardware, and a documented repair procedure |
Crews working from a boat need the same discipline as a construction gang: life vests, a rescue boat, ladders, fall protection where height is involved, and a shutdown plan for weather that turns. On remote shorelines without a usable power feed, a portable solar panel generator can run test instruments and task lighting during commissioning without stringing a temporary line to the site.
Environmental Co-Benefits and Limits
Shading water has real effects, and they cut both ways. Where panels cover part of a surface, the water below stays cooler and evaporates more slowly, which matters to a utility that is paying to move or treat that water. The same shading changes the light regime for everything living underneath.
| Effect | Reported magnitude | What limits it |
|---|---|---|
| Algal growth | Shading is reported to inhibit blooms. Bloom reduction has been associated with covering more than 40% of a surface | That conflicts with typical ecological coverage guidance; treat algae control as a site-specific claim to test |
| Land preservation | No agricultural or habitat land taken | Only holds if the shore station and cable route avoid sensitive ground |
| Aquatic habitat | Cooler water and reduced light below the panels | Shading may inhibit photosynthesis and alter the behaviour of light-responsive fish and zooplankton, and panel surfaces emit polarized light that can affect insects, birds, and amphibians; keep coverage low and monitor |
| Societal use | Generation continues alongside the water body’s primary job | Fisheries, scenery, and property values can drive local opposition; consult recreational and fishing users before layout work |
Treat any algae benefit as a bonus that requires site-specific evidence, and do not let it justify a coverage share the ecology review will reject. Long-term observation is part of the deal: a floating array changes the water body, and the reliable way to know how is to measure it. That is where a smart water management monitoring layer, covering dissolved oxygen, temperature, and turbidity, earns its place in the budget alongside the inverters.
Utility Context and Storage Scope Note
Storage is a different project. Lithium iron phosphate battery banks, packaged power units, and islanded microgrid control need their own fault study, protection coordination, and code review, and nothing in this guide tells you how to size or wire them.
Warning
Do not bolt a battery bank onto a floating array design without a separate electrical scope. Islanded operation changes the earthing arrangement, protection settings, and switching procedure, and it must be engineered as its own system.
If storage enters the picture, hardware such as a 48V lithium iron phosphate battery or a smaller 12 volt lithium battery can serve auxiliary loads, such as monitoring radios, cameras, and telemetry nodes on a remote bank, while the main plant stays grid-tied under its own design. Keep those auxiliary circuits on their own drawings so nobody confuses them with the array’s electrical system.
The Decision Rule
A floating array is a decision you can fail cheaply or fail expensively, and the cheap failures happen at the desk. A bed that will not hold an anchor, a coverage limit that will not carry the capacity you need, or a cable route that eats the business case are all reasons to walk away while the survey invoice is still small.
Proceed when the engineering and the paperwork point the same way: signed survey and modelled storm loads, a stamped mooring and float design, a licensed electrical design with a defined shore station, permits issued with the coverage limit in writing, and an O&M plan covering storm shutdown, emergency mooring, and spares. Get that far and a calm lake or pond becomes a strong solar site for a municipality or a farm: no land taken out of production, cooler modules, and a water asset that keeps doing its original job. Skip it and you have built a very expensive raft.
